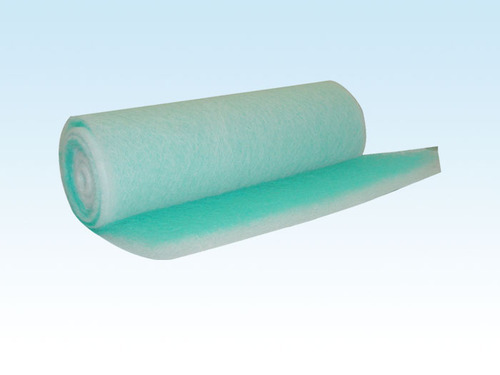

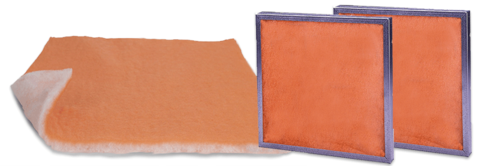

Ceiling Filter - Synthetic in roll
These are ceiling filters for are used for spray booth. Our ceiling air filter are made of progressively structure media made using synthetic thermo bonded fibers - adhesive coated in depth. We also offer sizes which are customized as per specific customer requirements. We are well known ceiling filter media exporter offering them at market leading prices.
Item – Ceiling Filter
Model – CF-560
Thickness – 25 mm
Roll Size Avbl – 0.8m x 22m / 1.0m x 20m / 1.6m x 22m / 2m x 20m / 2.1m x 22m

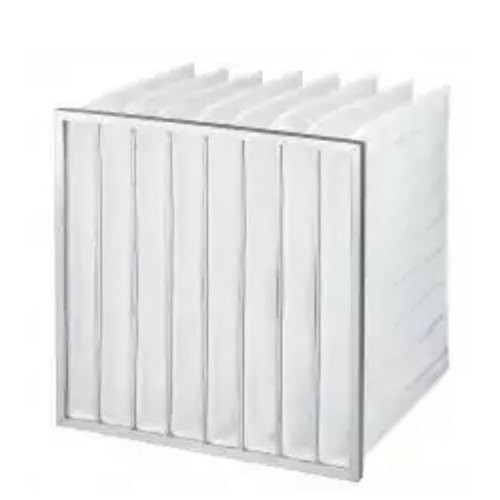

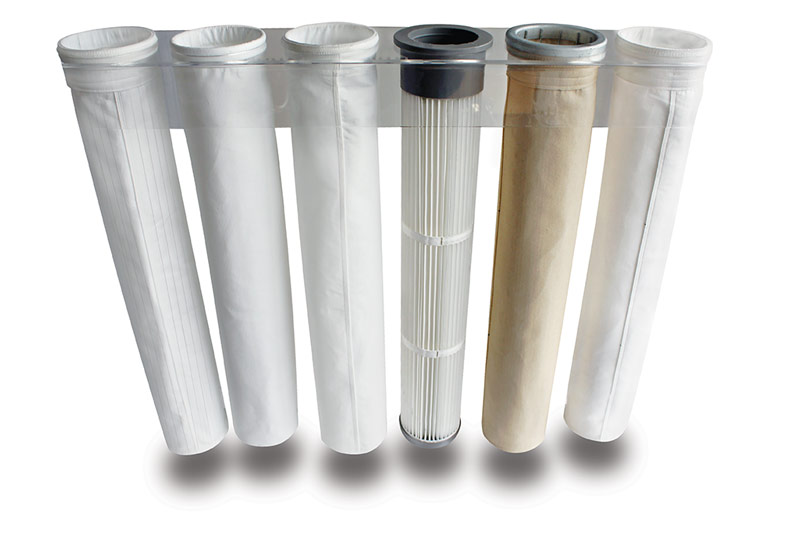

Big Bag Filter designed to fit all regular 20 big housing. Bag Filter for 20 Big Jumbo Housing
are suitable for a broad variety of commercial uses and are commonly used as Pre
Filters for large commercial plant where high flow rates are required.

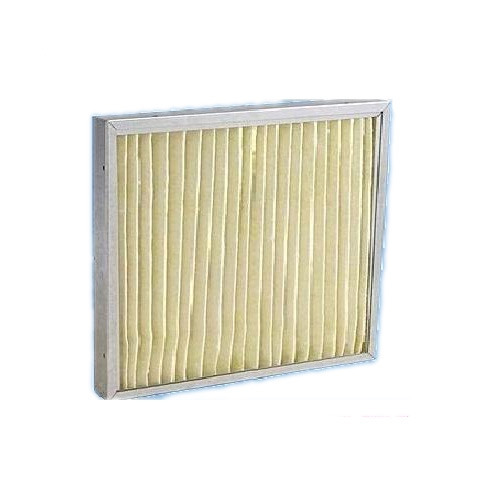

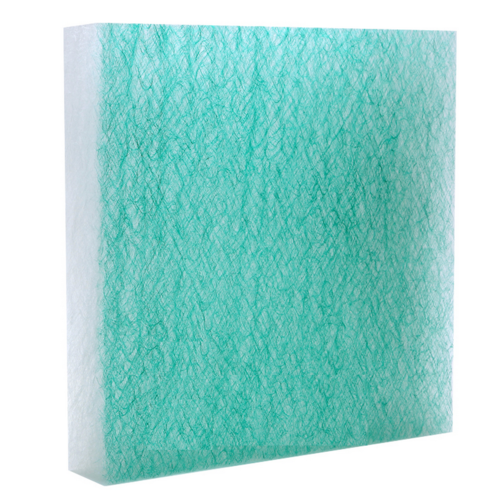

With rich industry experience we are manufacturing and exporting superior quality
of Glass Fiber Filter Pads that is available in different thickness & sizes. These
filters find applications in various industries and are offered in various specifications to our
clients. Clients can avail these at affordable prices. Our ranges of these are widely appreciated for
their best performance, dependability and long functional life.
Thickness : 2", 4"
Roll size standard : 2 m
X 20 m, 0.8 X 20 m, 1 m X 20 m
Roll size non standard as per customized sizes
available with scrim (Net Support), Spool and Core
Ceiling and Floor Filters are also in our
Paint Stop Spray Booth Fiberglass Filter Media, Flexible Air Filter Media Rolls /
Low initial resistance
Different color on inlet and outlet
Economical and pratical
or cut to pads
Used in the spray booth or filter mist in
This filter is able to absorb the dissociation paint particles completely and
keep the discharged air clean and the air circulated in the spray booths becomes much purer.Replacing
the filter timely can avoid the paint particle block and prevent the danger caused by the high
pressure in the spray booth.
General Description: Paint stop LHG fiberglass filter media air filter
Air Flow Rate: 4320m3/hr
Final resistance: 250Pa
Air velocity: 1.2m/s
Max Temperature: 350 C
Filtration Class:G3(DIN 24185)
Flame Resistance: F1(DIN 53438)
with glass fiber matting or without plastic mesh backing.

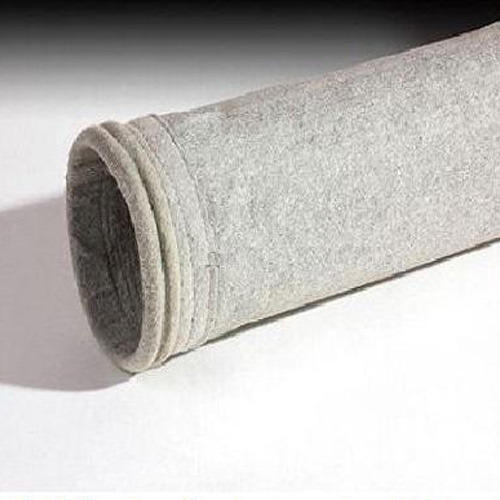

These Fiber Glass Filter Bag manufactured using superior quality fabric and other
material in tandem with international guidelines. Due to features like high dirt holding capacity low
pressure drop low maintenance and excellent performance our offered Fiber Glass Filter Bags are widely
applauded in the market. Moreover, our experts make sure that these bags are delivered at clients end
within the stipulated time-frame.

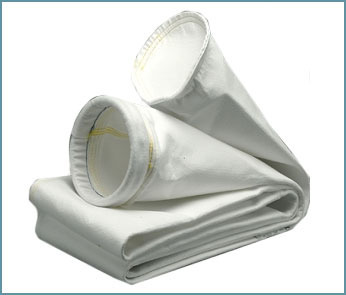

Reverse Jet Filter Bagand Reverse Jet Bag Filter from us. The range of
reverse jet filter units are designed to cater for more specialist dust that cannot be handled by the
standard shaker type filter systems. Reverse jet / reverse pulse units are normally required where a
constant air volume is needed without possibility of the equipment being shut off for cleaning. To
achieve this maintenance of the designed air volume at pre-determined intervals a burst of compressed
air is released from the reservoir on the unit inducing a shock wave and short back flow of air into
the cartridges or bags. This breaks free the dust cake formed on the outer surface of the cartridge or
bag allowing this to then freely fall into the hopper at the base of the unit. This is all controlled
automatically with an electrical panel mounted on the unit.
cater for the wide variation of air volumes encountered in these types of systems we are able to offer
a variety of fan options which can be mounted either directly on the units or at floor level adjacent
to the units. Alternatively the units may be provided without fans for incorporation into either
existing systems or fitting with free issue fans. Our engineers are at hand to select the correct fan
for your particular requirement when necessary or at anytime for assistance.

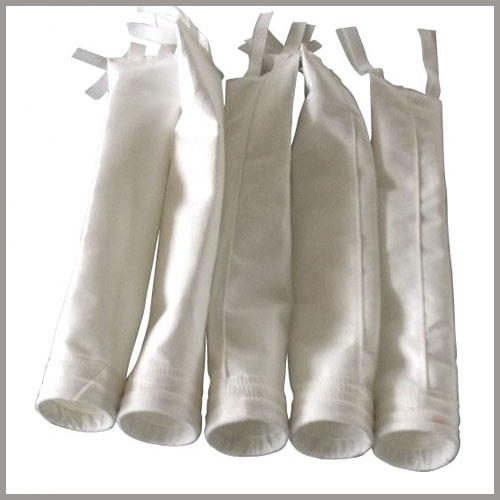

Manufacturer supplier and exporter of Shaker Filter Bag.Filter bags are
one of the most important part of a dust collector. We manufacture filter bags like shaker type dust collector in a number of designs; ENVIRO TECH
Filters gives Special consideration on fabric selection fabrication technique and designs to
give the best performance.

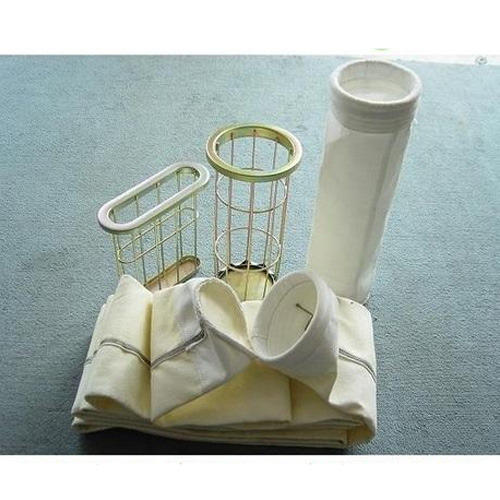

Our company is prominent in providing a wide range of Acrylic Filter Media to
the valuable patrons. Our Acrylic Filter Bag is manufactured by making use of the optimum quality raw
material. Normally in filtration acrylic refers to homo polymer acrylic which is essentially made from
100% of acrylic nitrite. Occasionally less expensive lower performance co polymer acrylics are
We are successfully ranked amongst the top manufacturers and suppliers of a qualitative
range of Pleated Bag Filters. Fabricated using optimum quality factor inputs and sophisticated
technology they are designed in compliance with the international standards. These filters are widely
praised among our valuable clients for their easy installation, leak proof nature and high durability.
Apart from this, they are stringently tested on various parameters of quality in order to deliver
flawless range at clients end.

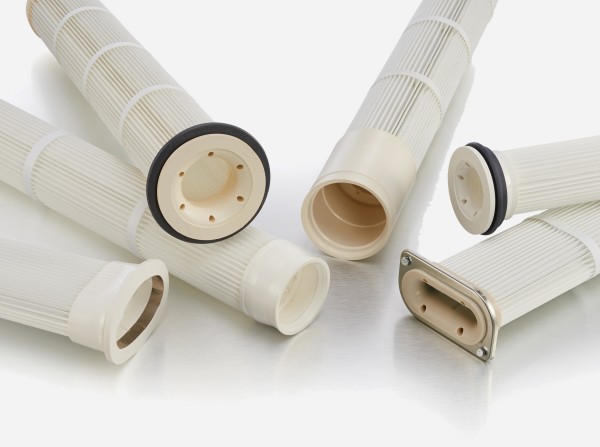

Pleated Filter Bag features a unique filter design that can be
retrofitted into the existing bag collector thus increasing the volume of air passing through each
The increased air capacity of the filter is due
to a greater surface area
The Pleated Bag features
a PU flange at the top & bottom and has an integrated inner core made of metal
All the filter mediums used in the pleated bag are of
The installation procedure is simple and
the part is made of Synthetic material which prevents damages that may occur when other components are
Pleated bag filter have the following:
Easy to install
Stable and cannot break or fall through the sheet
The filter area is 2-4 times larger than that of traditional
These bags can withstand temperature up to 130
High air to cloth ratio and a high
dust load capacity
Dryer used under the system of Heat transfer by forced convection it is applicable when your input is
in granual or in crystal form and your end product is in powder form. During the operation drying gas
is passed through the bed of solids at a velocity sufficient to keep the bed in fluidized state which
promotes high heat transfer and drying rate. Our filter bags give you the excellent output from you

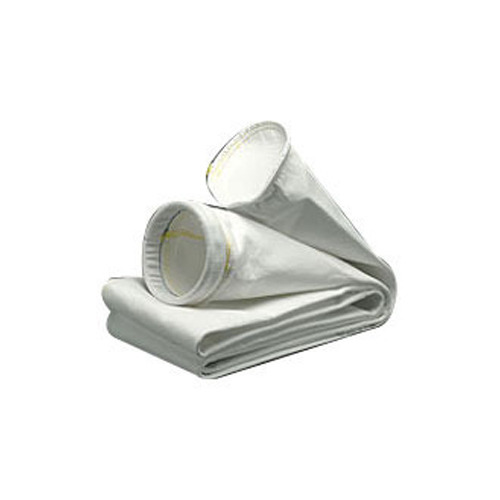

Manufacturer supplier and exporter of Polyester Filter Bag. These Polyester Filter Bag is
manufactured using high grade raw material. Our entire range of Polyester Filter Bags are available at
market leading prices.
Features and Benefits
Broad chemical compatibility
Available in needle felt and mesh type
Wide selection of filter media. e. g. Polypropylene Polyester Nylon Cotton non
Various micron ratings from 1 to 200 (felt material)
arrangement with S.S or rubber or plastic collar or by snap band type ring
Available in single
and double length.
All material is FDA compliant
Drinking water and
water treatment plants
Pharma applications: fluid bed dryers certifuges bags
Highly viscous fluids
Paint Ink Varnish
Cooking oil Coolants
Dust Collectors in cement dyes carbon steel & aluminum

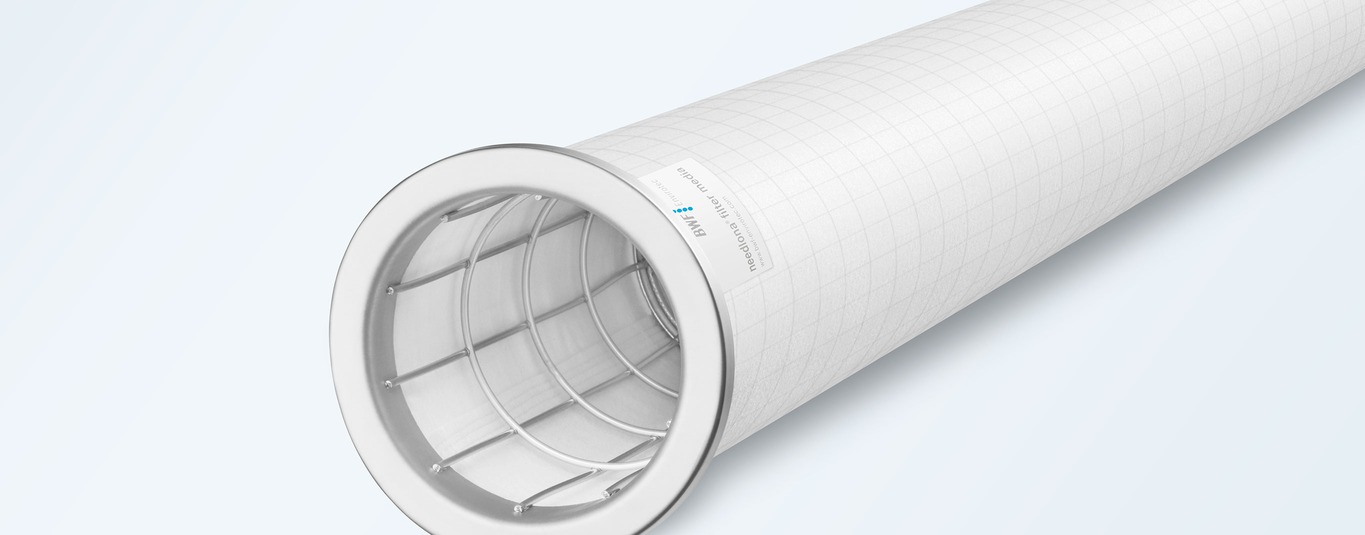

Manufacturer of Pulse Jet Filter bag. As far as The Pulse Jet Filter bag Concern it consists
of filter cylinders(bags) enclosed in a metal housing. In operation dust-laden air enters through the
center of bag filter. Either pressure or suction delivers the dirty air to the hopper. The fine
practices travel upward and collect on the filter bags. The clean air passes through the bag and is
vented to the atmosphere. A high pressure jet of compressed air directed through the bag at timed
intervals removes the dust which is deposited in the hopper and is easily collected for disposal or
recovered for use.
Pulse Jet Filter
bag : The dust-tight Pulse Jet Filter bag has three section: a plenum at the top
a collector housing in the center and a hopper at the bottom. A plenum houses the blow tubes and
supports for the solenoid valves. Clean air or gas is discharged through the exhaust outlet in the
plenum. The housing contains the filter bag assemblies. Below the housing is the hopper which contains
the inlet. A diffuser in the hopper, adjacent to the inlet absorbs the impact of the high velocity
dust particles and properly distributes the incoming air. Pressure drop, which measures collector
performance, is indicated by a ENVIRO TECH Gauge connected at one end to the filter bag section and to
the clean air plenum at the other end. A Gujtex rotary airlock is recommended as a discharge valve to
handle the collected dust.
Outfitted with a modern infrastructure, we are the most prominent manufacturer trader exporter and supplier of a wide array ofPocket Filter. This filter is manufactured using optimum quality raw material and advanced technology. We provide this range to our clients in various specifications. Clients can avail the offered filter from us at market leading prices.
Outfitted with a modern
infrastructure we are the most prominent manufacturer traderb exporter and supplier of a wide array
ofBag Filter. This filter is manufactured using optimum quality raw material and
advanced technology. We provide this range to our clients in various specifications. Clients can avail
the offered filter from us at market leading prices.

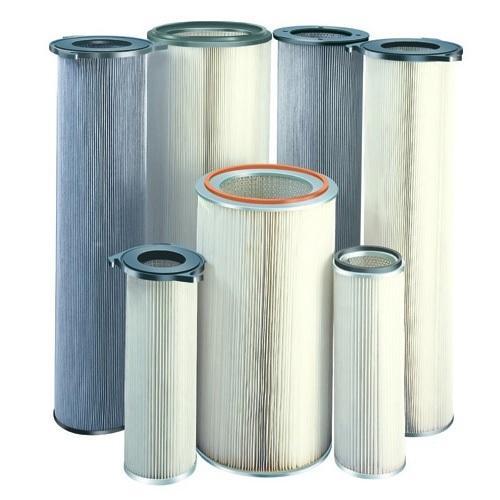

We offer a number
ofdust collector pleated standard filters that are available in three different
diameters such as 150mm 225mm and 325mm. These flanges are made from aluminium / stainless steel and
its base and interior baskets are from 1.2mm galvanized steel.
We fabricate specifically designeddust collector - pleated bag filtersthat can be retrofitted into existing
bag collectors which result in increasing air volume passing though each bag. These pleated bag
filters have PU flanges at the top and bottom and has integrated inner core made of PP. These filters
have a number of salient features including:
Easy removable parts
Low consumption of air
Filter area 2-4 times larger than that of traditional bags
Synthetic parts which make these resistant to abrasion

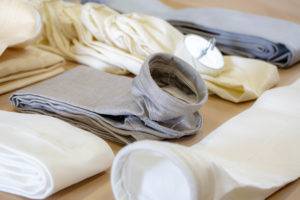

We fabricate high quality dust collector convectional filter
bags that are made from superior quality raw material such as base fiber. These dust
collector filter bags are precisely fabricated under the strict quality control inspections
right from the stage of procurement of raw material to the finished product. The dust collector filter
bags are stitched according to clients requirement with the state-of-the-art stitching machines. These
conventional dust filter bags are widely used in various industries including cement steel
incinerators boilers power stations, salt processing, ceramic and many others. Further these offer an
entire range of media as follows:
ENVIRO TECHfilters is leading manufacturer and supplier of a comprehensive
assortment of Non Woven Filter Bags. Non Woven Filter Bag are fabricated using superior quality fabric
and advanced technology. The offered Non Woven Filter Bag are designed with high precision in order to
meet the international quality standards. These Non Woven Filter Bag are Rigorously tested on various
parameters by our quality controllers, Non Woven Filter Bag are available in varied patterns and sizes
as per the varied demands of clients. In addition to this, Non Woven Filter Bags can be availed by
clients from us at the most reasonable price.
Non Woven Filter Bags are stitched according
to customers requirement with state-of-the art stitching machines.
Non Woven Filter Bags are used in a number of industries such as: cement steel
incinerators boilers power stations salt processing, ceramic, portable dust collectors etc

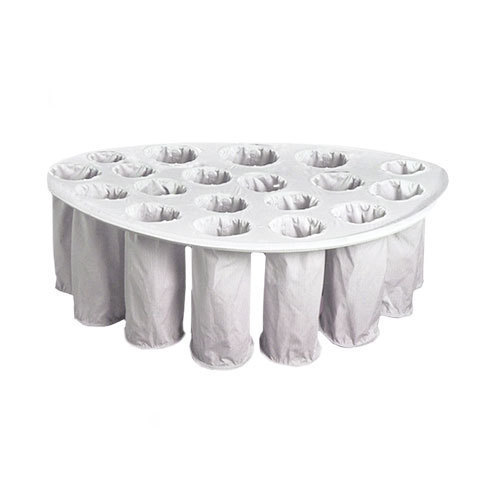

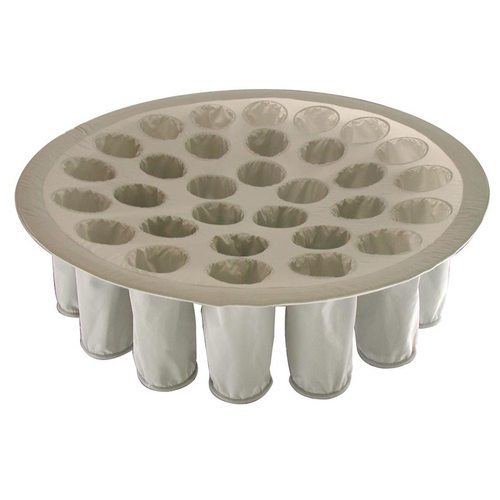

Having a definite quality management system, we are regarded as the noteworthy
manufacturer trader exporter and supplier of an extensive gamut of Fluid Bed Dryer Bags
Filter. These are used in various industries such as pharmaceuticals chemical industry
beverage food etc.The offered range is meticulously tested on various quality parameters and is
widely demanded in various industries. The provided range is manufactured by utilizing optimum quality
raw material and latest technology. In line with international standard we provide the entire range in
various customized options and at affordable prices.
High absorbing capacity
are as follows:
bags are customized to your specific needs and dryer equipment.
cutting technology achieves precise and constant dimensions.
