Construction: The element is constructed using 5 layer of GI Wire
mesh interspaced with 2 crimpled layers and 3 flat layers. The media is supported with expanded metal
from both sides as reinforcement and housed usually in deep metal frame (custom build sizes are also
available on order).
Specification Efficiency

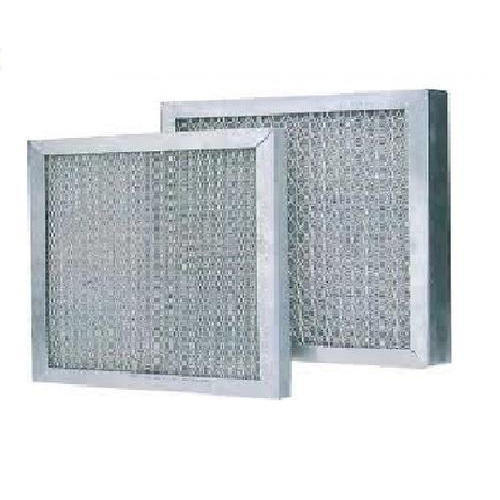

Standard Pleated Metal Mesh Filter have an

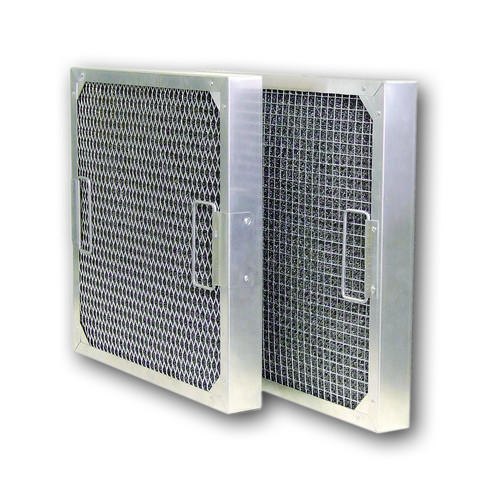

efficiency of 65% for 20 micron size particles. Metallic filters with an efficiency rating of 65-85%
to capture 25 micron to 50 micron size particles are also available on order. Efficiency can be
increased to 85% if the filters are oil wetted.
Frame Type : Available in Flange
or Box Type GI,AL.,SS.
Filter media
: GI/SS/Aluminum expanded mesh
Face guard
: Filter is protected with expanded mesh on both sides
Pressure drop :Initial pressure drop ~1mm wg & recommended final pressure drop is 5-
10mm wg
Operating conditions
Filter can withstand temperature >80âºc and relative
humidity of 70%. Recommended air velocity is 2m/sec to 2. 5m/sec. Filter is washable and can be washed
using water or back air pressure and reused.
Application
Pleated Metal Mesh Filter are most
suited for:
Air Handling Units (ahus),
Automatic Drain Holes,
Paint Shops,
Textile Mills,
Cement Factories,
Miscellaneous Industrial Ventilation.
